  Home > Product Center > Scissor
Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)  (Optional color)

HY-JSXB-A-3530

ULTRA THIN SCISSOR LIFT

CHARACTERISTICS

1.Ultrathin structure, surface mount, the initial landing height is 105mm, occupied small space.
2.The Italy original imported hydraulic pump valve and electrical components.
3.Double cylinder drive, safe and stable synchronization.
4.Meet the needs of different vehicles repair and detection.
5.One button to adjust balance and upper return oil, prevent oil cylinder rust.

TECHNICAL SPECIFICATIONS

  • 3500kgLifting Capacity
  • 1850mmLifting Height
  • 105mmMin. Height
  • 70s-90sLifting Time
  • 1450mmLength Of The Platform
  • 635mmPlatform Width
  • 3.0kw-380v or 3.0kw-220vMotor Power
  • 24MPaOil Pressure Rating
  • 0.6-0.8MPaAir Pressure
  • 850kgWeight

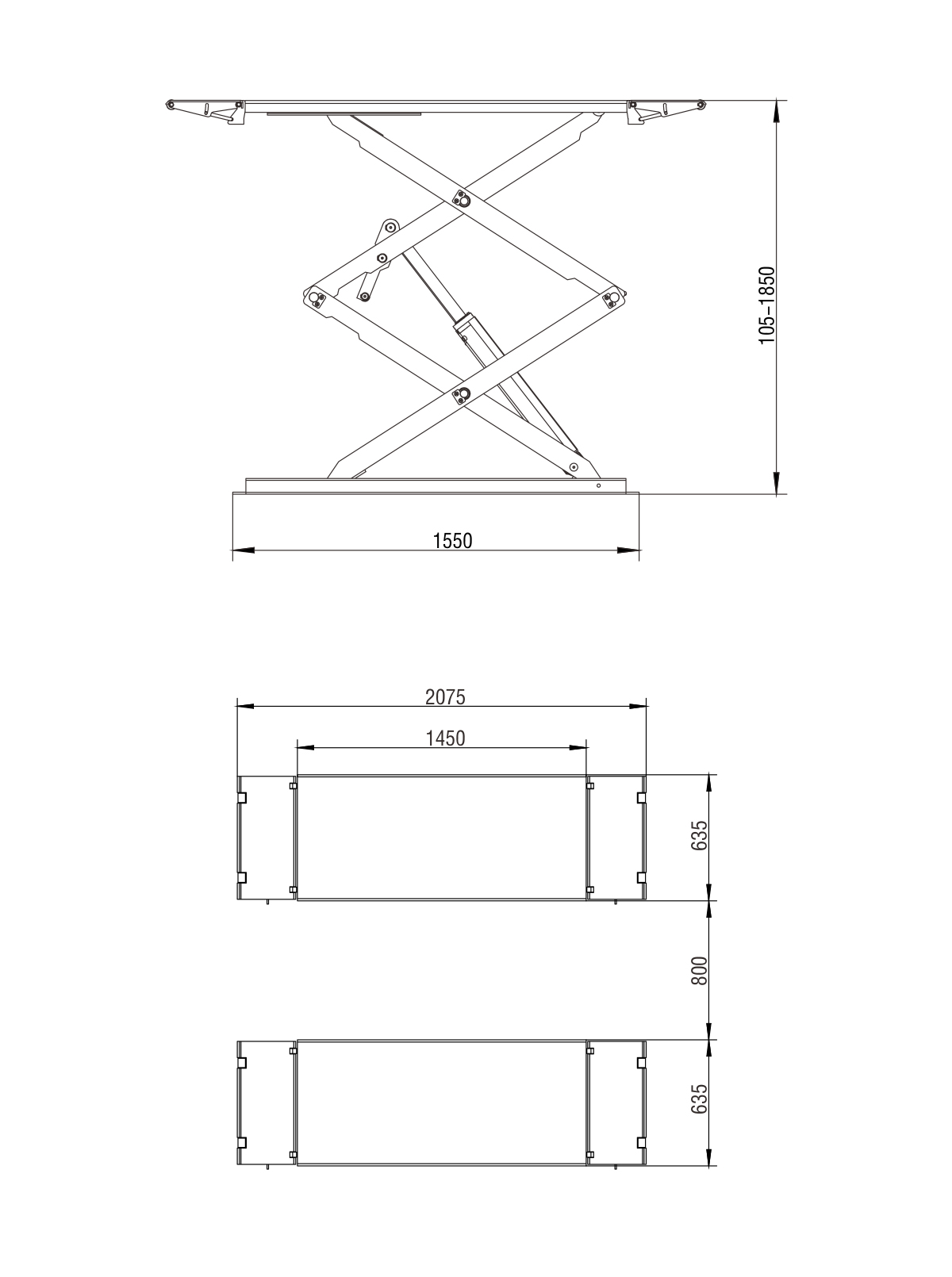

  DIMENSIONS (mm)
